Impact screen: what you get
An impact screen stops the ball and shows the projected image. Screen size sets the projector distance, and the weave affects image sharpness, noise and bounce-back.
Sizes offered
| Size or configuration | Area | Shape |
|---|---|---|
| 10 ft | — | — |
| 11 ft | — | — |
| 12 ft | — | — |
| 13 ft | — | — |
| 14 ft | — | — |
| 15 ft | — | — |
| 16 ft | — | — |
| 17 ft | — | — |
| 18 ft | — | — |
| 19 ft | — | — |
| 20 ft | — | — |
| 9 ft | — | — |
Listed details
| Item | Seller figure |
|---|---|
| Impact screen | Cut to your opening, triple layer |

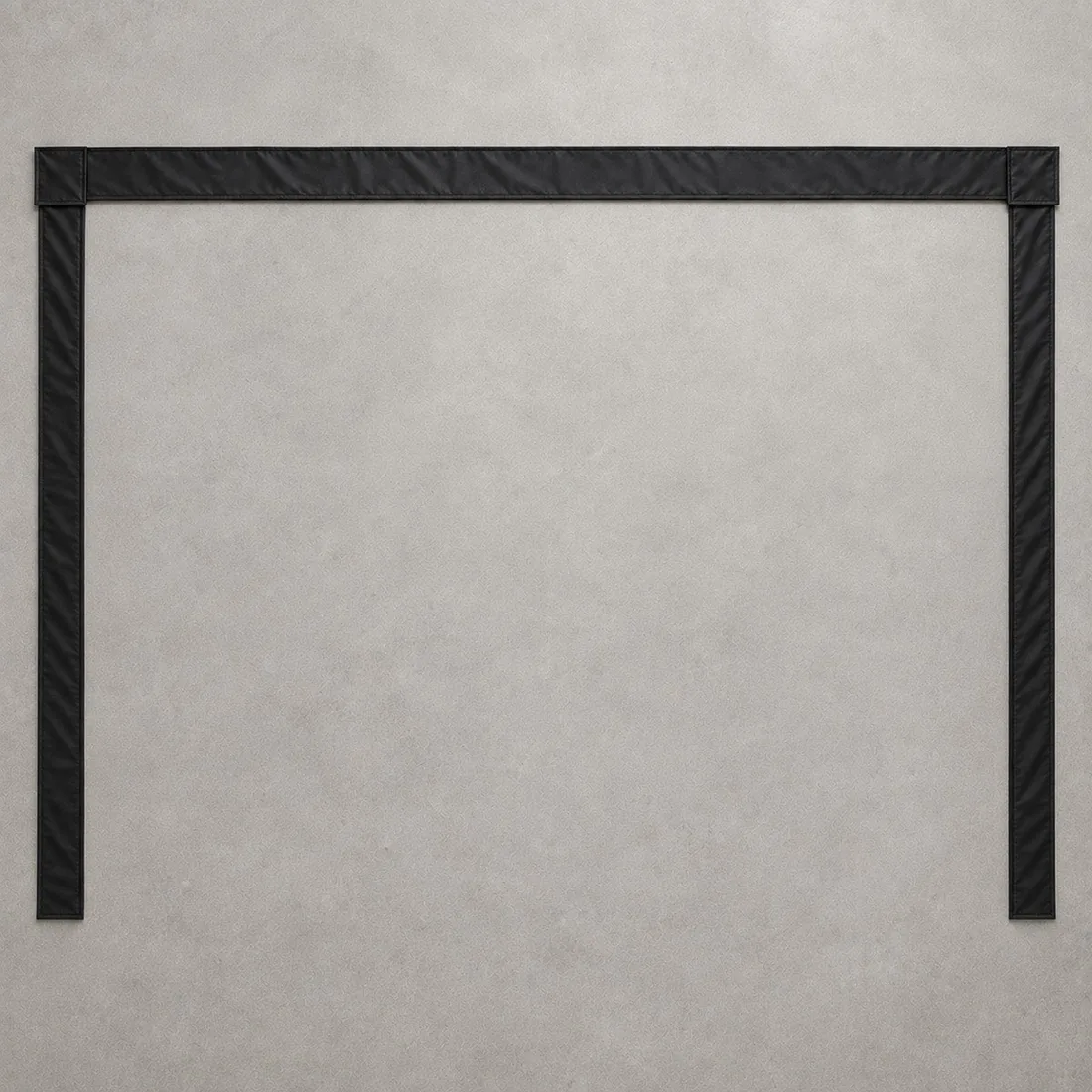

| Transition flaps | Sides and head |
| Rigid head framing | Sectioned to ship parcel |
| Tension cable | Sides and sill |
| Turnbuckles | 2, hook and swaged eye |
| Corner pulleys | 2 |
| Eyelets and fasteners | Included |
| Dimension check before cutting | Every order |
| Room width | 9 ft to 20 ft, 14 ft+ to center the tee |
| Ceiling height | 8 ft 6 in to 11 ft, 9 ft to 10 ft 6 in ideal |
| Room depth | 13 ft minimum, 15 ft or more ideal |
| Max finished screen height | 117 in |
| Head frame height above floor | 126 in max |
| Screen top edge straightness | Held to 1/8 in |
Features the seller lists
- THE WHOLE HEAD ASSEMBLY, NOT JUST FABRIC
- Trusted Since 2016
Planning notes
Plan the room around the frame, then check the projector distance for the screen shape.
| Check | Rule of thumb |
|---|---|
| Width | Frame width + about 6 in each side |
| Height | Frame height + space to assemble; the ceiling must also clear your swing |
| Depth | Screen gap (8–12 in) + 8–10 ft to the ball + about 4.5 ft behind it |
| Projector | Short-throw lenses mount about 5–8 ft from a 10–12 ft wide 4:3 screen |
Use the room size calculator with your launch monitor to confirm depth.
Fit check
Checks to make against your room and equipment before ordering.
- ✓SizeOptions: 10 ft, 11 ft, 12 ft, 13 ft, 14 ft, 15 ft…
- ?Room fitMeasure the floor area and ceiling before ordering; allow space to assemble.
- iDeliveryLarger items may ship by freight or in several boxes; confirm lead time and returns with the seller.
Specifications
Each figure is labelled with where it comes from. Numbered references link to the source list below.
Published specifications
| Impact screen | Cut to your opening, triple layer[S1] | Retailer listing |
|---|---|---|
| Transition flaps | Sides and head[S1] | Retailer listing |
| Rigid head framing | Sectioned to ship parcel[S1] | Retailer listing |
| Tension cable | Sides and sill[S1] | Retailer listing |
| Turnbuckles | 2, hook and swaged eye[S1] | Retailer listing |
| Corner pulleys | 2[S1] | Retailer listing |
| Eyelets and fasteners | Included[S1] | Retailer listing |
| Dimension check before cutting | Every order[S1] | Retailer listing |
| Room width | 9 ft to 20 ft, 14 ft+ to center the tee[S1] | Retailer listing |
| Ceiling height | 8 ft 6 in to 11 ft, 9 ft to 10 ft 6 in ideal[S1] | Retailer listing |
| Room depth | 13 ft minimum, 15 ft or more ideal[S1] | Retailer listing |
| Max finished screen height | 117 in[S1] | Retailer listing |
| Head frame height above floor | 126 in max[S1] | Retailer listing |
| Screen top edge straightness | Held to 1/8 in[S1] | Retailer listing |
| Rooms outside these limits | Talk to our team first[S1] | Retailer listing |
| Lead time | Made to order after your dimensions are confirmed[S1] | Retailer listing |
| Sizes offered | 10 ft, 11 ft, 12 ft, 13 ft, 14 ft, 15 ft, 16 ft, 17 ft, 18 ft, 19 ft, 20 ft, 9 ft[S1] | Retailer listing |
Limitations to weigh
- Specifications are the seller's; FOREference has not measured this product.
Alternatives worth comparing
Where to buy
Our link opens this exact product page. Prices and stock change; check before you order.
Every link opens the product page for this exact model. We may earn a commission; it never changes what we publish. Disclosure
Questions buyers ask
What sizes does the RoS Built-In Screen Kit come in?
Where can I buy the RoS Built-In Screen Kit?
Sources and verification
- Rain or Shine Golf — RoS Built-In Screen Kit — product page and specifications Retrieved 30 Sep 2026
FOREference has not tested this product hands-on. This reference is compiled from the sources above; our calculations are labelled and show their working. Last verified 30 Sep 2026. How we work
