Impact screen: what you get
An impact screen stops the ball and shows the projected image. Screen size sets the projector distance, and the weave affects image sharpness, noise and bounce-back.
Sizes offered
| Size or configuration | Area | Shape |
|---|---|---|
| 7.7 x 10 (4:3) | 77 sq ft | ≈ 4:3 |
| 8 x 10.5 (4:3) | 84 sq ft | ≈ 4:3 |
| 8.5 x 11.5 (4:3) | 98 sq ft | ≈ 4:3 |
| 9 x 12 (4:3) | 108 sq ft | ≈ 4:3 |
| 9.5 x 12.5 (4:3) | 119 sq ft | ≈ 4:3 |
| 10 x 13 (4:3) | 130 sq ft | ≈ 4:3 |
| 7.7 x 13 (16:9) | 100 sq ft | ≈ 16:10 |
| 8 x 14 (16:9) | 112 sq ft | ≈ 16:9 |
| 8.5 x 15 (16:9) | 128 sq ft | ≈ 16:9 |
| 9 x 16 (16:9) | 144 sq ft | ≈ 16:9 |
| 9.5 x 17 (16:9) | 162 sq ft | ≈ 16:9 |
| 10 x 18 (16:9) | 180 sq ft | ≈ 16:9 |
FOREference calculationShape = width ÷ height, matched to the nearest standard aspect ratio. A 16:9 projector on a 4:3 screen uses 75% of its frame; the throw calculator shows the distance for your screen.
Listed details
| Item | Seller figure |
|---|---|
| Material | 100% heavy-duty polyester |
| Ball Speed Rating | Rated to 250 mph |
| Available Heights | 7.7' – 10' |
| Available Aspect Ratios | 1:1, 4:3, 16:9, 16:10 |

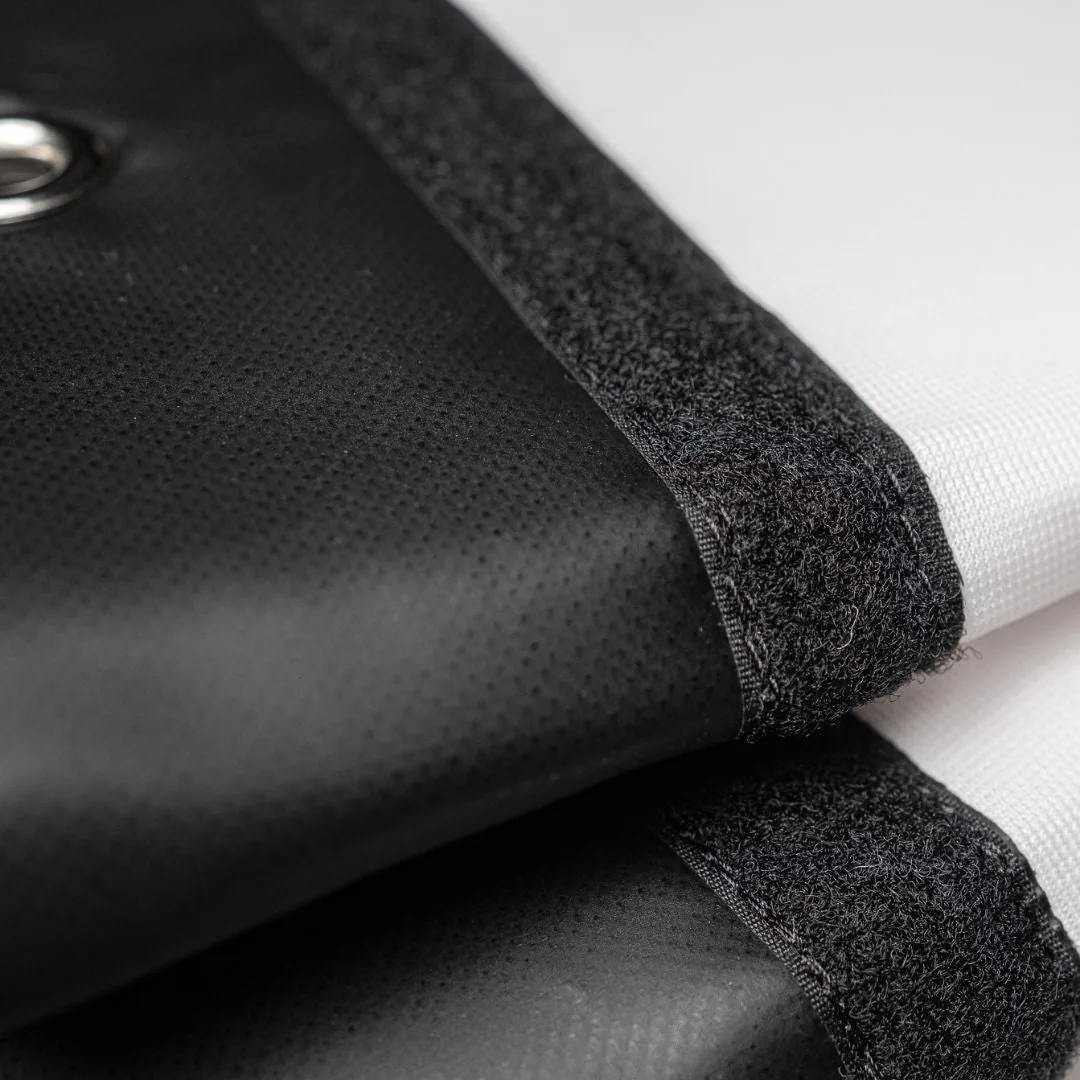

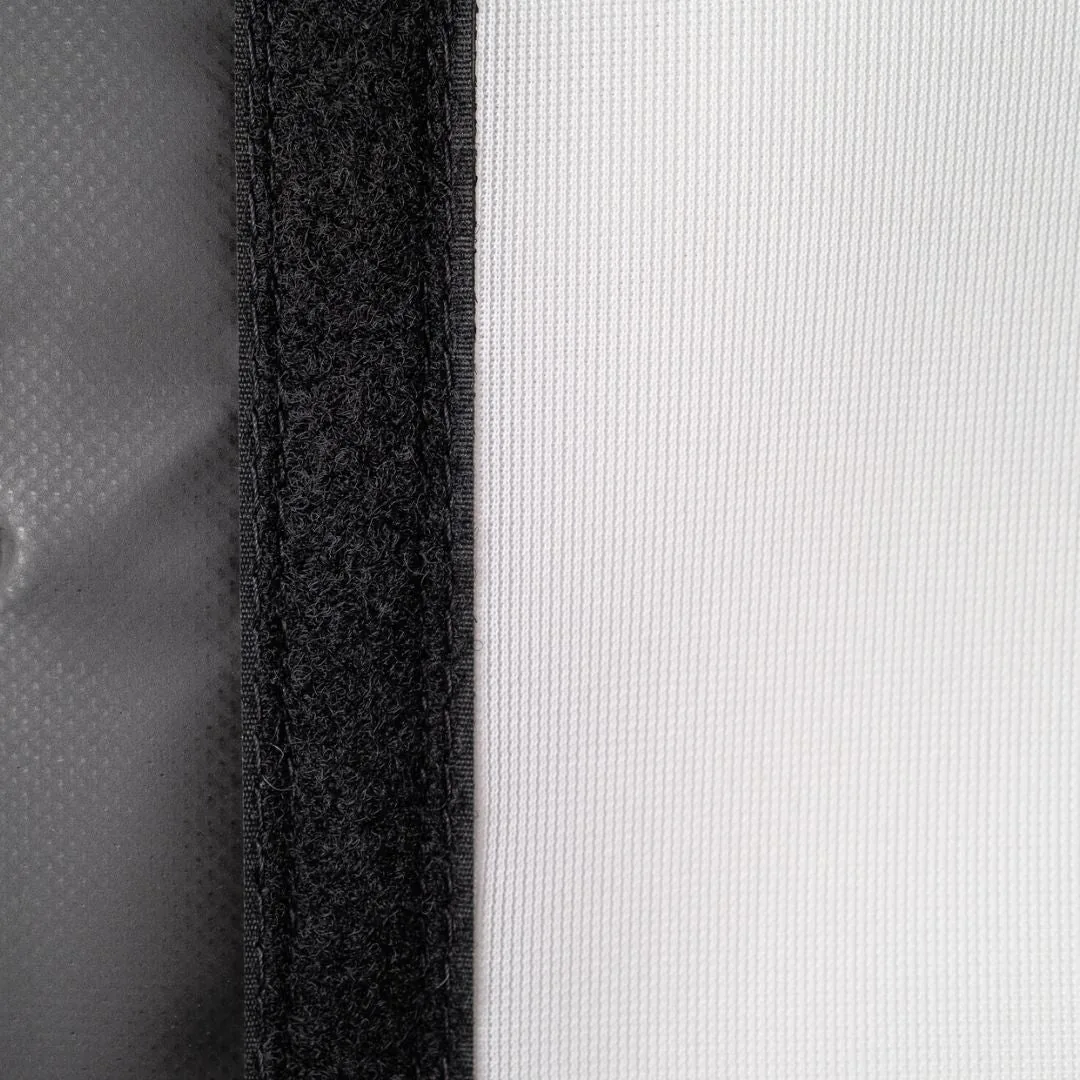

| Surround Finish | 1" loop surround — standard on all sizes |
| Attachment Compatibility | Bungees, hook tape, standard enclosure frames |
| Production | Made to order in the USA — materials and manufacturing |
| Lead Time | Approximately 2–3 weeks from order |
| Single Layer | Tightly woven heavy-duty polyester, strong HD image quality |
| Triple Layer | 3-layer impact-resistant polyester, noise-dampening center layer, superior image quality |
| Included | ROS Impact Screen in selected size and tier, finished 1" loop surround |
Features the seller lists
- Made in the USA
- Rated to 250 MPH Ball Speed
Planning notes
Plan the room around the frame, then check the projector distance for the screen shape.
| Check | Rule of thumb |
|---|---|
| Width | Frame width + about 6 in each side |
| Height | Frame height + space to assemble; the ceiling must also clear your swing |
| Depth | Screen gap (8–12 in) + 8–10 ft to the ball + about 4.5 ft behind it |
| Projector | Short-throw lenses mount about 5–8 ft from a 10–12 ft wide 4:3 screen |
Use the room size calculator with your launch monitor to confirm depth.
Fit check
Checks to make against your room and equipment before ordering.
✓ Required? Check firsti Good to know
- ✓SizeOptions: 7.7 x 10 (4:3), 8 x 10.5 (4:3), 8.5 x 11.5 (4:3), 9 x 12 (4:3), 9.5 x 12.5 (4:3), 10 x 13 (4:3)…
- ?Room fitMeasure the floor area and ceiling before ordering; allow space to assemble.
- iDeliveryLarger items may ship by freight or in several boxes; confirm lead time and returns with the seller.
Specifications
Each figure is labelled with where it comes from. Numbered references link to the source list below.
Manufacturer storeRetailer listingFOREference calculationNot verified
Published specifications
| Material | 100% heavy-duty polyester[S1] | Retailer listing |
|---|---|---|
| Ball Speed Rating | Rated to 250 mph[S1] | Retailer listing |
| Available Heights | 7.7' – 10'[S1] | Retailer listing |
| Available Aspect Ratios | 1:1, 4:3, 16:9, 16:10[S1] | Retailer listing |
| Surround Finish | 1" loop surround — standard on all sizes[S1] | Retailer listing |
| Attachment Compatibility | Bungees, hook tape, standard enclosure frames[S1] | Retailer listing |
| Production | Made to order in the USA — materials and manufacturing[S1] | Retailer listing |
| Lead Time | Approximately 2–3 weeks from order[S1] | Retailer listing |
| Single Layer | Tightly woven heavy-duty polyester, strong HD image quality[S1] | Retailer listing |
| Triple Layer | 3-layer impact-resistant polyester, noise-dampening center layer, superior image quality[S1] | Retailer listing |
| Included | ROS Impact Screen in selected size and tier, finished 1" loop surround[S1] | Retailer listing |
| Sizes offered | 7.7 x 10 (4:3), 8 x 10.5 (4:3), 8.5 x 11.5 (4:3), 9 x 12 (4:3), 9.5 x 12.5 (4:3), 10 x 13 (4:3), 7.7 x 13 (16:9), 8 x 14 (16:9), 8.5 x 15 (16:9), 9 x 16 (16:9), 9.5 x 17 (16:9), 10 x 18 (16:9), 7.7 x 11.5 (16:10), 8 x 12 (16:10)[S1] | Retailer listing |
Limitations to weigh
- Specifications are the seller's; FOREference has not measured this product.
Alternatives worth comparing
Where to buy
Our link opens this exact product page. Prices and stock change; check before you order.
$289Rain or Shine Golf listed price (configurations to $999) · seen 30 Sep 2026
Every link opens the product page for this exact model. We may earn a commission; it never changes what we publish. Disclosure
Questions buyers ask
What sizes does the RoS Golf Simulator Screen come in?
7.7 x 10 (4:3), 8 x 10.5 (4:3), 8.5 x 11.5 (4:3), 9 x 12 (4:3), 9.5 x 12.5 (4:3), 10 x 13 (4:3), 7.7 x 13 (16:9), 8 x 14 (16:9), 8.5 x 15 (16:9), 9 x 16 (16:9)
Where can I buy the RoS Golf Simulator Screen?
1 specialist seller list it: Rain or Shine Golf.
Sources and verification
- Rain or Shine Golf — RoS Golf Simulator Screen — product page and specifications Retrieved 30 Sep 2026
FOREference has not tested this product hands-on. This reference is compiled from the sources above; our calculations are labelled and show their working. Last verified 30 Sep 2026. How we work
