Simulator enclosure: what you get

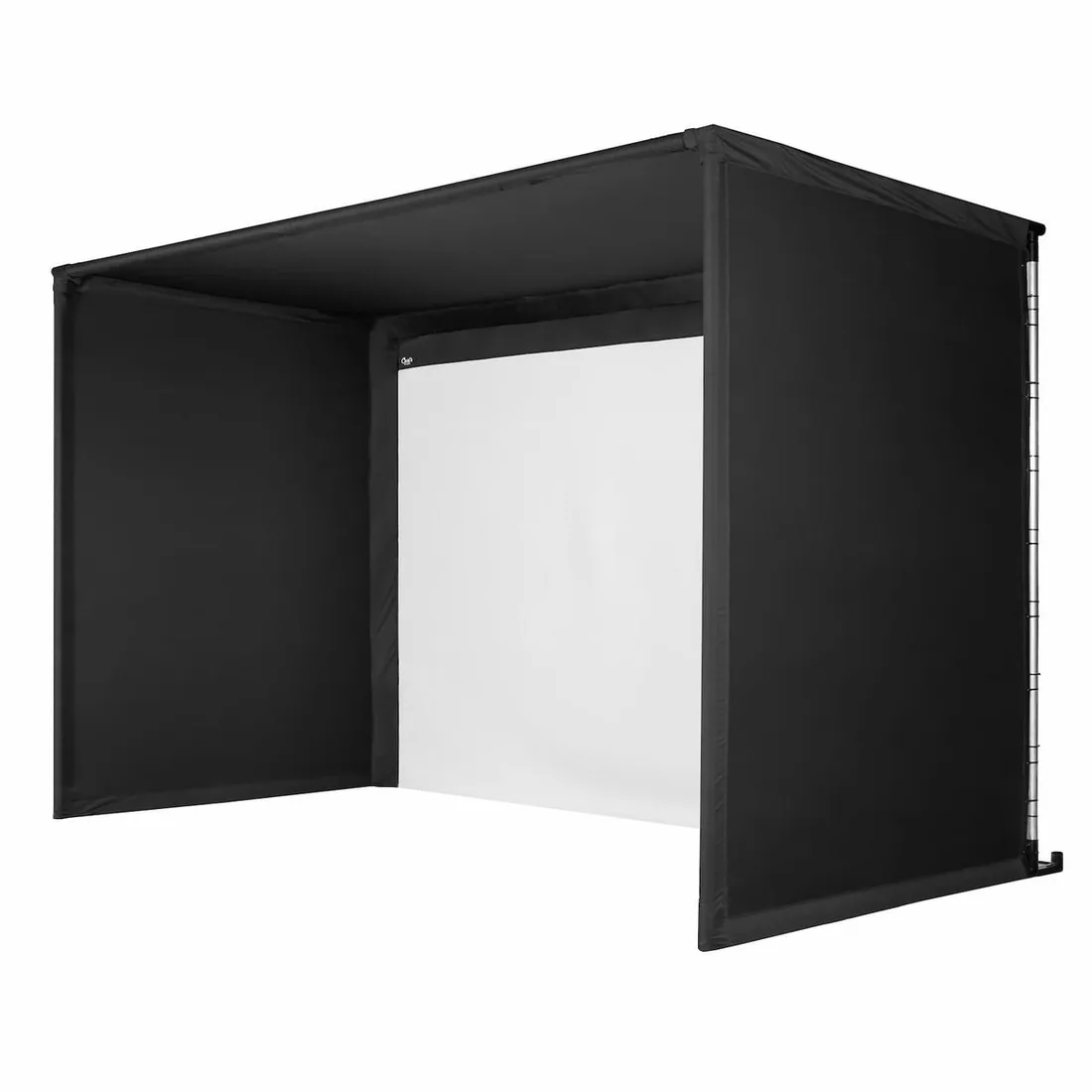

An enclosure holds the impact screen and side netting in one frame and catches mishits. Its frame size fixes the minimum room width and height, and the screen shape decides which projector setup fills it cleanly.
Sizes offered
| Size or configuration | Area | Shape |
|---|---|---|
| 8' x 10.5' x 5' | 84 sq ft | ≈ 4:3 |
| 8.5' x 11' x 5' | 94 sq ft | ≈ 4:3 |
| 8.5' x 14.5' x 5' | 123 sq ft | ≈ 16:9 |
| 9' x 12' x 5' | 108 sq ft | ≈ 4:3 |
| 10' x 13' x 5' | 130 sq ft | ≈ 4:3 |
| 10' x 15.5' x 5' | 155 sq ft | ≈ 16:10 |
| 8' x 10.5' x 8' | 84 sq ft | ≈ 4:3 |
| 8.5' x 11' x 8' | 94 sq ft | ≈ 4:3 |
| 8.5' x 14.5' x 8' | 123 sq ft | ≈ 16:9 |
| 9' x 12' x 8' | 108 sq ft | ≈ 4:3 |
| 10' x 13' x 8' | 130 sq ft | ≈ 4:3 |
| 10' x 15.5' x 8' | 155 sq ft | ≈ 16:10 |
FOREference calculationShape = width ÷ height, matched to the nearest standard aspect ratio. A 16:9 projector on a 4:3 screen uses 75% of its frame; the throw calculator shows the distance for your screen.
Listed details
| Item | Seller figure |
|---|---|
| Listing Size | Aspect Ratio |
| Overall Enclosure Dimensions (inches) | Viewable Screen Dimensions (inches) |
| Depth Options (inches) | Height (inches) |
| Width (inches) | Viewable Height (inches) |
| Viewable Width (inches) | Diagonal (inches) |
| 8 x 10.5 | 4:3 |
| 102 x 132.4 | 90.3 x 120.4 |
| 69.5, 105.5, 129.5, 189.5 | 102 |
| 132.4 | 90.3 |
| 120.4 | 150.5 |
| 8.5 x 11 | 4:3 |
| 107 x 139.1 | 95.3 x 127.1 |
| 139.1 | 95.3 |
| 127.1 | 158.9 |
Features the seller lists

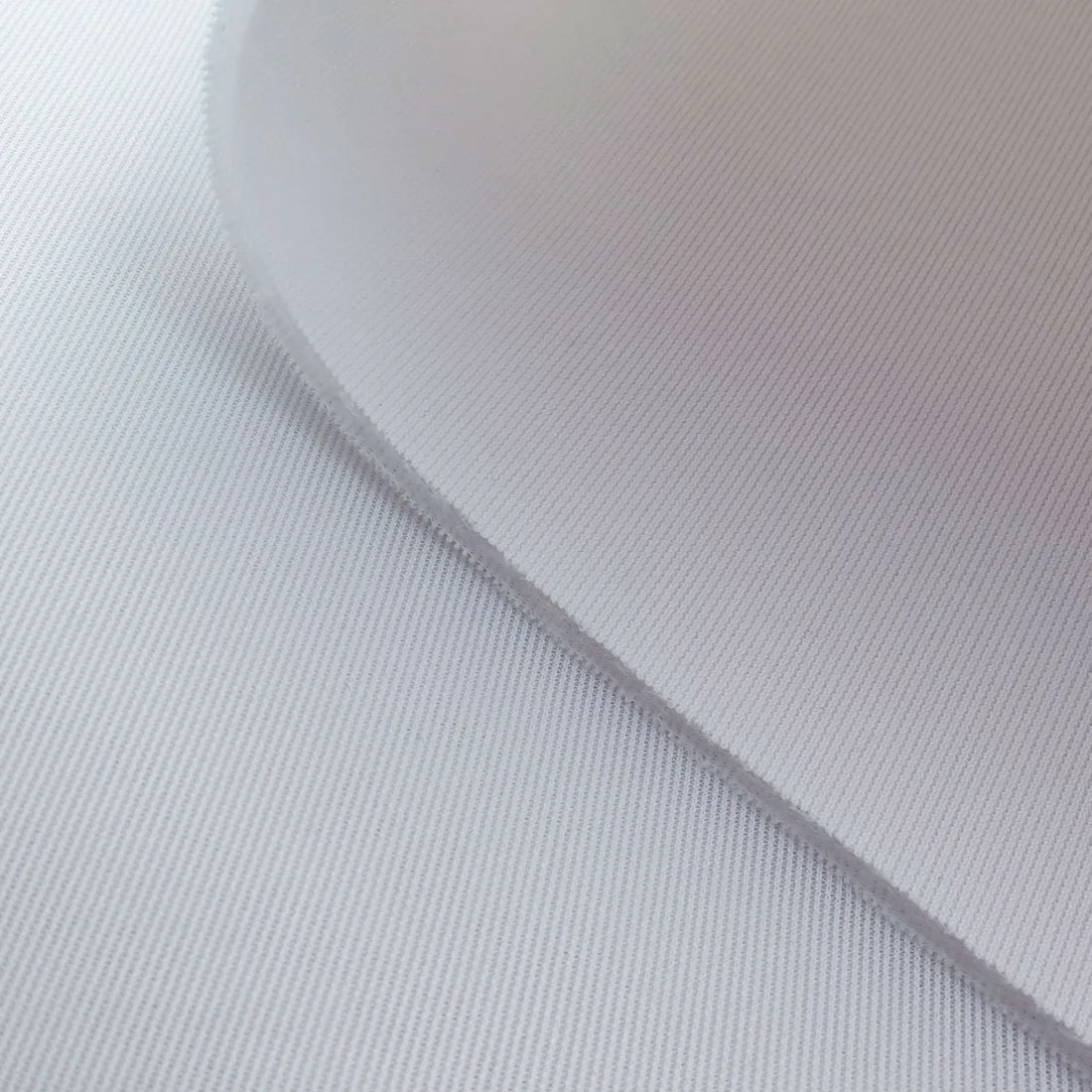

- Seamless integration with turf, leading up to a premium triple-layer golf impact screen.
- Add safety foam inserts and structural pipes as needed.
- Ball bungees and zip ties included for optimal screen tension adjustment.
- Ball Bungees and Zip Ties: For securing the enclosure and customizing screen tension.
- Robust Black Knit Enclosure
- Sturdy Steel Fittings
- Allow an additional 3" of buffer space on the sides, and 6" over the top.
- Pipe Framing Kit
- Foam Insert Kit
- Safety Baffle
Planning notes
Plan the room around the frame, then check the projector distance for the screen shape.
| Check | Rule of thumb |
|---|---|
| Width | Frame width + about 6 in each side |
| Height | Frame height + space to assemble; the ceiling must also clear your swing |
| Depth | Screen gap (8–12 in) + 8–10 ft to the ball + about 4.5 ft behind it |
| Projector | Short-throw lenses mount about 5–8 ft from a 10–12 ft wide 4:3 screen |
Use the room size calculator with your launch monitor to confirm depth.
Fit check
Checks to make against your room and equipment before ordering.
✓ Required? Check firsti Good to know
- ✓SizeOptions: 8' x 10.5' x 5', 8.5' x 11' x 5', 8.5' x 14.5' x 5', 9' x 12' x 5', 10' x 13' x 5', 10' x 15.5' x 5'…
- ?Room fitMeasure the floor area and ceiling before ordering; allow space to assemble.
- iDeliveryLarger items may ship by freight or in several boxes; confirm lead time and returns with the seller.
Specifications
Each figure is labelled with where it comes from. Numbered references link to the source list below.
Manufacturer storeRetailer listingFOREference calculationNot verified
Published specifications
| Listing Size | Aspect Ratio[S1] | Retailer listing |
|---|---|---|
| Overall Enclosure Dimensions (inches) | Viewable Screen Dimensions (inches)[S1] | Retailer listing |
| Depth Options (inches) | Height (inches)[S1] | Retailer listing |
| Width (inches) | Viewable Height (inches)[S1] | Retailer listing |
| Viewable Width (inches) | Diagonal (inches)[S1] | Retailer listing |
| 8 x 10.5 | 4:3[S1] | Retailer listing |
| 102 x 132.4 | 90.3 x 120.4[S1] | Retailer listing |
| 69.5, 105.5, 129.5, 189.5 | 102[S1] | Retailer listing |
| 132.4 | 90.3[S1] | Retailer listing |
| 120.4 | 150.5[S1] | Retailer listing |
| 8.5 x 11 | 4:3[S1] | Retailer listing |
| 107 x 139.1 | 95.3 x 127.1[S1] | Retailer listing |
| 139.1 | 95.3[S1] | Retailer listing |
| 127.1 | 158.9[S1] | Retailer listing |
| 8.5 x 14.5 | 16:9[S1] | Retailer listing |
| 107 x 181.8 | 95.5 x 169.8[S1] | Retailer listing |
| 181.8 | 95.5[S1] | Retailer listing |
| 169.8 | 194.8[S1] | Retailer listing |
| Sizes offered | 8' x 10.5' x 5', 8.5' x 11' x 5', 8.5' x 14.5' x 5', 9' x 12' x 5', 10' x 13' x 5', 10' x 15.5' x 5', 8' x 10.5' x 8', 8.5' x 11' x 8', 8.5' x 14.5' x 8', 9' x 12' x 8', 10' x 13' x 8', 10' x 15.5' x 8', 9' x 12' x 10', 10' x 13' x 10'[S2] | Retailer listing |
Limitations to weigh
- Specifications are the seller's; FOREference has not measured this product.
Alternatives worth comparing
Where to buy
3 specialist sellers list this exact product. Prices were observed on 30 Sep 2026; confirm the current price, stock and included items before ordering.
| Seller | Listed price | Type |
|---|---|---|
| Rain or Shine Golf | $3,409.95–$5,609.95 | Specialist retailer |
| PlayBetter | $4,091.95 | Specialist retailer |
| Golf Simulators Direct | $3,409.95–$5,104.95 | Specialist retailer |
$3,409.95Rain or Shine Golf listed price (configurations to $5,610) · seen 30 Sep 2026
Every link opens the product page for this exact model. We may earn a commission; it never changes what we publish. Disclosure
Questions buyers ask
What sizes does the Carl's Place Pro Enclosure Kit come in?
8' x 10.5' x 5', 8.5' x 11' x 5', 8.5' x 14.5' x 5', 9' x 12' x 5', 10' x 13' x 5', 10' x 15.5' x 5', 8' x 10.5' x 8', 8.5' x 11' x 8', 8.5' x 14.5' x 8', 9' x 12' x 8'
Where can I buy the Carl's Place Pro Enclosure Kit?
3 specialist sellers list it: Rain or Shine Golf, PlayBetter and Golf Simulators Direct.
Sources and verification
- Golf Simulators Direct — Carl's Place: Pro Golf Simulator Enclosure Kit with Impact Screen — product page and specifications Retrieved 30 Sep 2026
- Rain or Shine Golf — Carl's Place Pro Enclosure Kit — product page Retrieved 30 Sep 2026
- PlayBetter — Carl's Place Pro Golf Simulator Enclosure Kit with Impact Screen — product page Retrieved 30 Sep 2026
FOREference has not tested this product hands-on. This reference is compiled from the sources above; our calculations are labelled and show their working. Last verified 30 Sep 2026. How we work
