Simulator enclosure: what you get
An enclosure holds the impact screen and side netting in one frame and catches mishits. Its frame size fixes the minimum room width and height, and the screen shape decides which projector setup fills it cleanly.
Sizes offered
| Size or configuration | Area | Shape |
|---|---|---|
| SwingBay 8' x 10.5' Enclosure Package | 84 sq ft | ≈ 4:3 |
| SwingBay 9' x 12' Enclosure Package | 108 sq ft | ≈ 4:3 |
| Single Layer (Increased Durability) | — | — |
| Triple-Layer Premium Screen (Quieter/Less Bounceback) | — | — |
FOREference calculationShape = width ÷ height, matched to the nearest standard aspect ratio. A 16:9 projector on a 4:3 screen uses 75% of its frame; the throw calculator shows the distance for your screen.
Listed details
| Item | Seller figure |
|---|---|
| Detail | Enclosure Specs |
| Full SwingBay Enclosure | 8'H x 4'2"D x 10'5"W |
| Impact Screen | Ballistics grade woven polyester impact and projection screen |
| Framing | 1.5" Aluminum Push-Button Frame |
| Curtains | Blackout ripstop nylon material, 10' side netting with 1" velcro |
| Assembly | 6" ball bungees (included) |
| SwingTurf | 5x5 or 4x9 size option, 5/8" foam backing, 1" pile height lifelike nylon turf |
| Landing Pad | 10' x 10' coverage with 1" putting green turf material (optional) |
| Projector | HD Short Throw, 3k lumens, high contrast, 25' HDMI connectivity |
| Projector Mount | Choice of floor enclosure or ceiling mount |
| PRODUCT FOOTPRINT | 11'W x 15'D x 8.1'H |

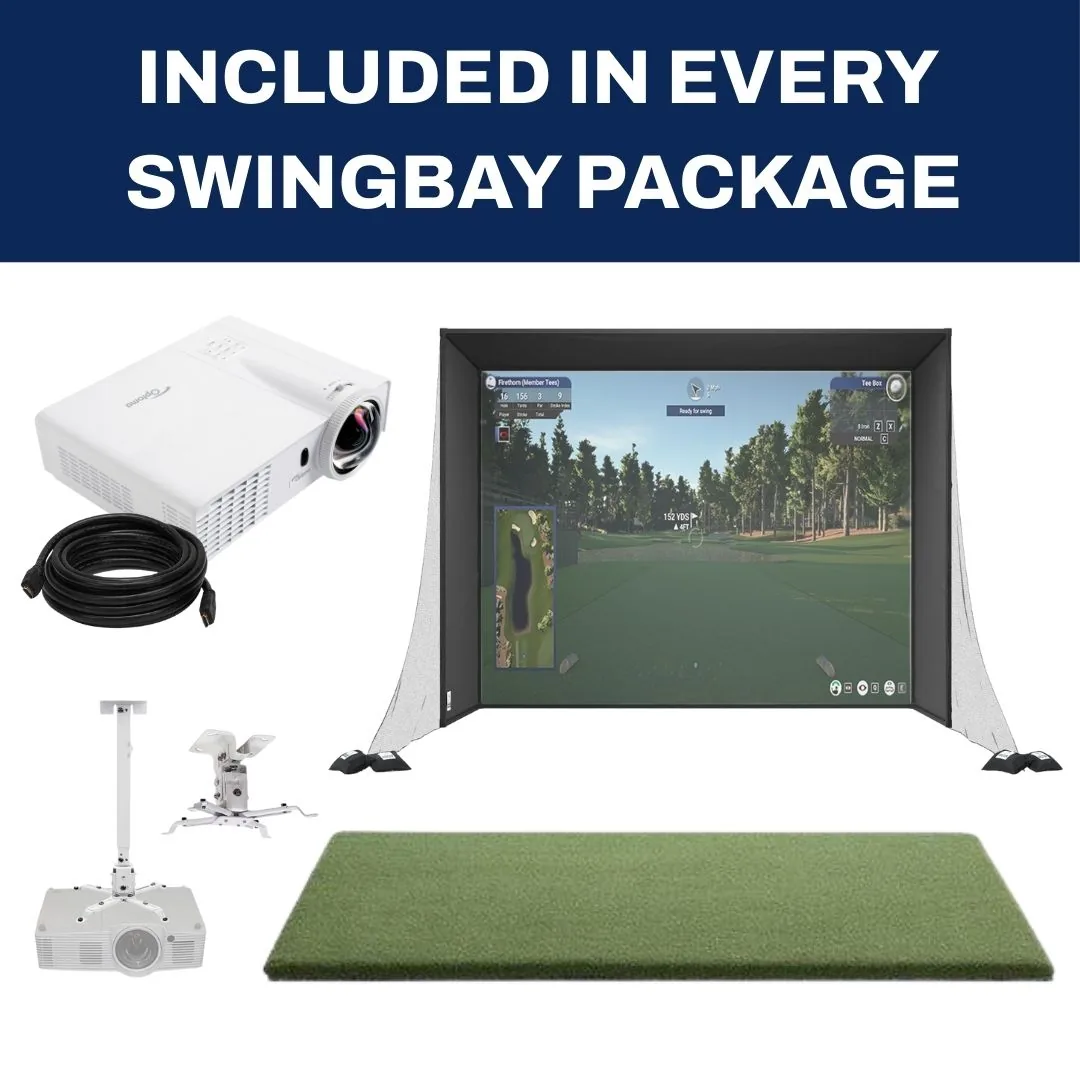

| Hardware | SwingBay Hitting Enclosure & Impact Screen; Side Netting; SwingTurf Golf Mat; (Optional) Landing Pad Turf for full turf coverage; Full HD High Lumen Short Throw Projector; Projector Ceiling Mount; 25' HDMI Cable |
Features the seller lists
- Trusted Since 2016
Other options and materials
- Turf: 5/8" foam backing, 1" pile
- Base: 5/8" foam
- Choose Your Turf Solution: SwingTurf 5x5 Hitting Mat, SwingTurf 4x9 Hitting Mat
Planning notes
Plan the room around the frame, then check the projector distance for the screen shape.
| Check | Rule of thumb |
|---|---|
| Width | Frame width + about 6 in each side |
| Height | Frame height + space to assemble; the ceiling must also clear your swing |
| Depth | Screen gap (8–12 in) + 8–10 ft to the ball + about 4.5 ft behind it |
| Projector | Short-throw lenses mount about 5–8 ft from a 10–12 ft wide 4:3 screen |
Use the room size calculator with your launch monitor to confirm depth.
Fit check
Checks to make against your room and equipment before ordering.
✓ Required? Check firsti Good to know
- ✓SizeOptions: SwingBay 8' x 10.5' Enclosure Package, SwingBay 9' x 12' Enclosure Package, Single Layer (Increased Durability), Triple-Layer Premium Screen (Quieter/Less Bounceback)
- ?Room fitMeasure the floor area and ceiling before ordering; allow space to assemble.
- iDeliveryLarger items may ship by freight or in several boxes; confirm lead time and returns with the seller.
Specifications
Each figure is labelled with where it comes from. Numbered references link to the source list below.
Manufacturer storeRetailer listingFOREference calculationNot verified
Published specifications
| Detail | Enclosure Specs[S1] | Retailer listing |
|---|---|---|
| Full SwingBay Enclosure | 8'H x 4'2"D x 10'5"W[S1] | Retailer listing |
| Impact Screen | Ballistics grade woven polyester impact and projection screen[S1] | Retailer listing |
| Framing | 1.5" Aluminum Push-Button Frame[S1] | Retailer listing |
| Curtains | Blackout ripstop nylon material, 10' side netting with 1" velcro[S1] | Retailer listing |
| Assembly | 6" ball bungees (included)[S1] | Retailer listing |
| SwingTurf | 5x5 or 4x9 size option, 5/8" foam backing, 1" pile height lifelike nylon turf[S1] | Retailer listing |
| Landing Pad | 10' x 10' coverage with 1" putting green turf material (optional)[S1] | Retailer listing |
| Projector | HD Short Throw, 3k lumens, high contrast, 25' HDMI connectivity[S1] | Retailer listing |
| Projector Mount | Choice of floor enclosure or ceiling mount[S1] | Retailer listing |
| PRODUCT FOOTPRINT | 11'W x 15'D x 8.1'H[S1] | Retailer listing |
| Hardware | SwingBay Hitting Enclosure & Impact Screen; Side Netting; SwingTurf Golf Mat; (Optional) Landing Pad Turf for full turf coverage; Full HD High Lumen Short Throw Projector; Projector Ceiling Mount; 25' HDMI Cable[S1] | Retailer listing |
| Sizes offered | SwingBay 8' x 10.5' Enclosure Package, SwingBay 9' x 12' Enclosure Package, Single Layer (Increased Durability), Triple-Layer Premium Screen (Quieter/Less Bounceback)[S1] | Retailer listing |
Limitations to weigh
- Specifications are the seller's; FOREference has not measured this product.
Alternatives worth comparing
Where to buy
Our link opens this exact product page. Prices and stock change; check before you order.
$3,499Rain or Shine Golf listed price (configurations to $5,299) · seen 30 Sep 2026
Every link opens the product page for this exact model. We may earn a commission; it never changes what we publish. Disclosure
Questions buyers ask
What sizes does the SwingBay Enclosure Bundle come in?
SwingBay 8' x 10.5' Enclosure Package, SwingBay 9' x 12' Enclosure Package, Single Layer (Increased Durability), Triple-Layer Premium Screen (Quieter/Less Bounceback)
Where can I buy the SwingBay Enclosure Bundle?
1 specialist seller list it: Rain or Shine Golf.
Sources and verification
- Rain or Shine Golf — SwingBay Enclosure Bundle — product page and specifications Retrieved 30 Sep 2026
FOREference has not tested this product hands-on. This reference is compiled from the sources above; our calculations are labelled and show their working. Last verified 30 Sep 2026. How we work
