EK-308U

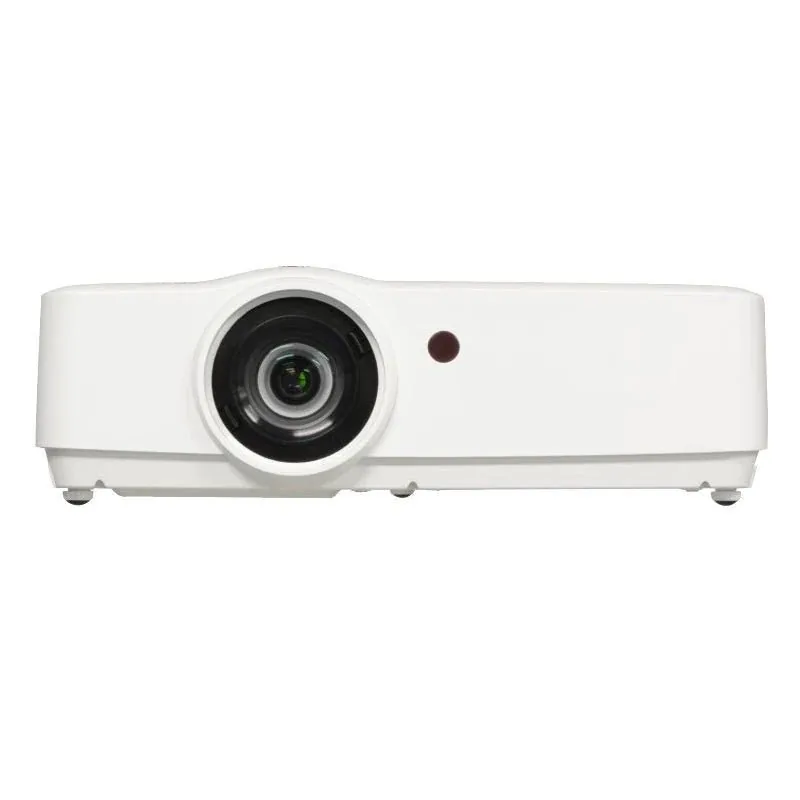

Product image: EIKI via Shop Indoor Golf

Standard-throw projector · WUXGA

EIKI EK-308U

EIKI · 3LCD · 16:10 native

The short answer

The EIKI EK-308U is a WUXGA lamp projector rated at 6,000 ANSI lumens with a 1.07–1.75:1 throw ratio. To fill a 10.5 × 8 ft (4:3) impact screen from its native 16:10 frame, the lens sits about 13′ 6″ from the screen, and that screen would see roughly 60 foot-lamberts — bright enough to tolerate some ambient light. Listed at $1,825 from Shop Indoor Golf.

Brightness
6,000 lm
Resolution
WUXGA
Throw ratio
1.07–1.75:1
Light source
Lamp
Price seen
$1,825

Good fit if

  • You have a long room and can mount it well behind the hitting area
  • Your room has some ambient light, or you run a large screen
  • You need lens shift to line the image up without tilting the projector
  • You run a 4:3 or square screen and want more of the chip used (16:10 native)

Look elsewhere if

  • Your room is short — a standard-throw lens needs more distance
  • You don't want to replace lamps
  • You can't mount it about 13′ 6″ from the screen
$1,825Shop Indoor Golf listed price · seen 30 Sep 2026
View at Shop Indoor Golf

Every link opens the product page for this exact model. We may earn a commission; it never changes what we publish. Disclosure

Throw distance for simulator screens

Simulator screens are usually 4:3 or square, while most projectors are 16:9 or 16:10. To fill a squarer screen, the projector's full frame is set so its height matches the screen height; the extra width is masked in software. That means the throw distance depends on the projector's native frame width, not the screen width.

ScreenFull 16:10 frame widthLens-to-screen distance
10.5 × 8 ft (4:3)12.6 ft13′ 6″ – 22′ 1″
12 × 9 ft (4:3)14.4 ft15′ 5″ – 25′ 2″
8 × 8 ft (1:1)12.8 ft13′ 8″ – 22′ 5″
12 × 7.5 ft (16:10)12.0 ft12′ 10″ – 21′
14 × 7.9 ft (16:9)14.0 ft15′ – 24′ 6″
FOREference calculationDistance = throw ratio × full frame width. Frame width = screen height × 16:10 when the screen is squarer than the projector. Try your own screen.

How bright will it look?

Brightness on the screen is what the golfer sees. We convert the rated lumens into foot-lamberts (fL) for each screen, counting only the share of the frame that lands on the screen, and assuming a screen gain of 1.0. Real results are lower in eco modes and as the light source ages.

ScreenFrame on screenBrightnessWhat that means
10.5 × 8 ft (4:3)83%60 fLbright enough to tolerate some ambient light
12 × 9 ft (4:3)83%46 fLgood in a dim room
8 × 8 ft (1:1)62%59 fLbright enough to tolerate some ambient light
12 × 7.5 ft (16:10)100%67 fLbright enough to tolerate some ambient light
14 × 7.9 ft (16:9)90%49 fLgood in a dim room
FOREference calculationfL = rated lumens × share of frame on screen × gain ÷ screen area (sq ft). Cinema reference is roughly 14–16 fL in a dark room.

Resolution and aspect ratio on a sim screen

The seller lists WUXGA (1920 × 1200) with a native 16:10 frame. On a squarer screen part of the frame is unused, so the effective resolution drops.

ScreenPixels on the screenShare of native frame
10.5 × 8 ft (4:3)1,600 × 1,20083%
12 × 9 ft (4:3)1,600 × 1,20083%
8 × 8 ft (1:1)1,200 × 1,20062%
12 × 7.5 ft (16:10)1,920 × 1,200100%
14 × 7.9 ft (16:9)1,920 × 1,08090%

Light source and running

A lamp gradually dims and eventually needs replacing; budget for a spare if you play daily.

Fit check: EIKI EK-308U

Planning checks from the published specification and our screen calculations.

✓ Required? Check firsti Good to know
  • ✓MountingMount sold separately. Short-throw models usually ceiling-mount just in front of the golfer so the swing does not cast a shadow; floor enclosures are an alternative. See projector mounts.
  • ✓Throw distanceAbout 13′ 6″ lens-to-screen for a 10.5 × 8 ft 4:3 screen.
  • ?Screen shapeNative 16:10; on a 4:3 screen 83% of the frame is used.
  • ?Image alignmentlens shift: Vertical ±45%, horizontal ±9% (manual) ; keystone: ±30° V/H plus corner
  • iCablingPlan an HDMI run from the PC or phone/tablet to the projector; long runs may need an active or fibre HDMI cable.

Specifications

Each figure is labelled with where it comes from. Numbered references link to the source list below.

Manufacturer storeRetailer listingFOREference calculationNot verified

Published specifications

Brightness6,000 ANSI lumens[S1]Retailer listing
ResolutionWUXGA (1920 × 1200)[S1]Retailer listing
Native aspect ratio16:10[S1]Retailer listing
Display technology3LCD[S1]Retailer listing
Light sourceLamp[S1]Retailer listing
Throw ratio1.07–1.75:1[S1]Retailer listing
Zoom1.6× manual[S1]Retailer listing
Lens shiftVertical ±45%, horizontal ±9% (manual)[S1]Retailer listing
Keystone±30° V/H plus corner[S1]Retailer listing
Weight9.9 lb[S1]Retailer listing
Throw distance2.23–37.5 ft[S1]Retailer listing
Lamp300 W lamp[S1]Retailer listing

FOREference calculations

Throw distance, 10.5 × 8 ft 4:3 screen13′ 6″FOREference calculation
Brightness on that screen60 fLFOREference calculation

Limitations to weigh

  • Lamp light source: brightness fades and the lamp needs replacing.
  • Mount, cables and screen are not included.

Alternatives worth comparing

Optoma ZK431ST-B4,100 lm, 4K UHD, throw 0.496; $26 less
BenQ AH500ST4,000 lm, 1080p, throw 0.69–0.83; $174 more
Panasonic PT-VZ580U5,000 lm, WUXGA; $425 less
LG ProBeam BU53RG5,000 lm, 4K UHD, throw 0.94–1.14; $1,974 more

Where to buy

2 specialist sellers list this exact product. Prices were observed on 30 Sep 2026; confirm the current price, stock and included items before ordering.

SellerListed priceType
Shop Indoor Golf$1,825Specialist retailer
Golf Simulators Direct$1,675Specialist retailer
$1,825Shop Indoor Golf listed price · seen 30 Sep 2026
View at Shop Indoor Golf

Every link opens the product page for this exact model. We may earn a commission; it never changes what we publish. Disclosure

Questions buyers ask

How far from the screen does the EIKI EK-308U go?
With a 1.07–1.75:1 throw ratio, about 13′ 6″ for a 10.5 × 8 ft (4:3) screen. Distance = throw ratio × the full frame width.
Is the EIKI EK-308U bright enough for a golf simulator?
Rated at 6,000 ANSI lumens, it gives roughly 60 fL on a 10.5 × 8 ft screen — bright enough to tolerate some ambient light.
Will the EIKI EK-308U fill a 4:3 golf screen?
Yes, by matching the screen height and masking the sides. Its native 16:10 frame means about 83% of the image is used on a 4:3 screen.
Laser or lamp: which does the EIKI EK-308U use?
Lamp.

Sources and verification

  1. Golf Simulators Direct — EIKI EK-308U WUXGA 3LCD: Golf Simulator Projector — product page and specifications Retrieved 30 Sep 2026
  2. Shop Indoor Golf — EK-308UK Golf Simulator Projector — product page Retrieved 30 Sep 2026

FOREference has not tested this product hands-on. This reference is compiled from the sources above; our calculations are labelled and show their working. Last verified 30 Sep 2026. How we work
