FOREference
PT-VMZ62

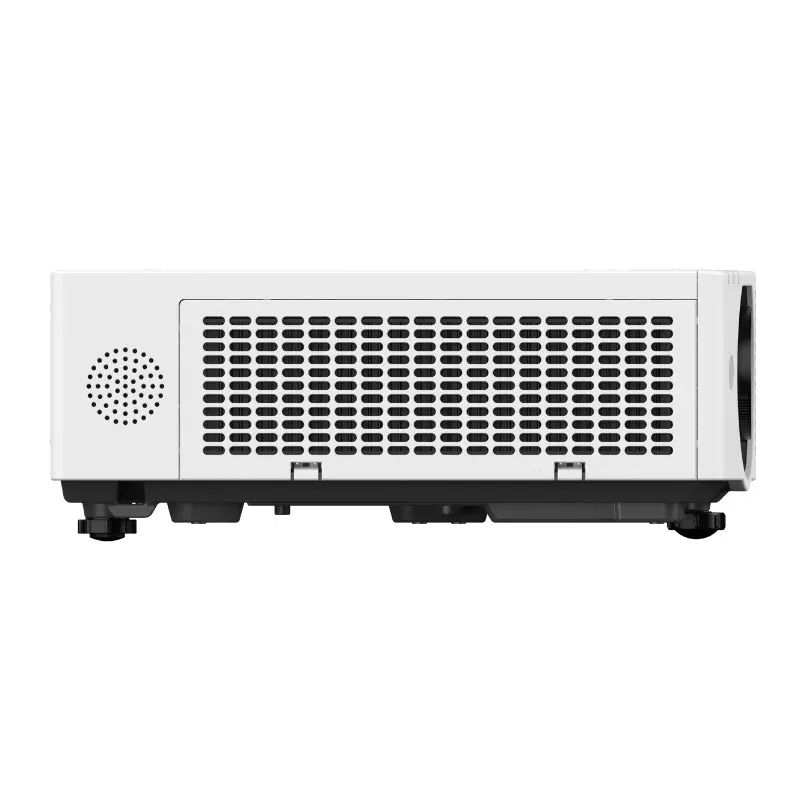

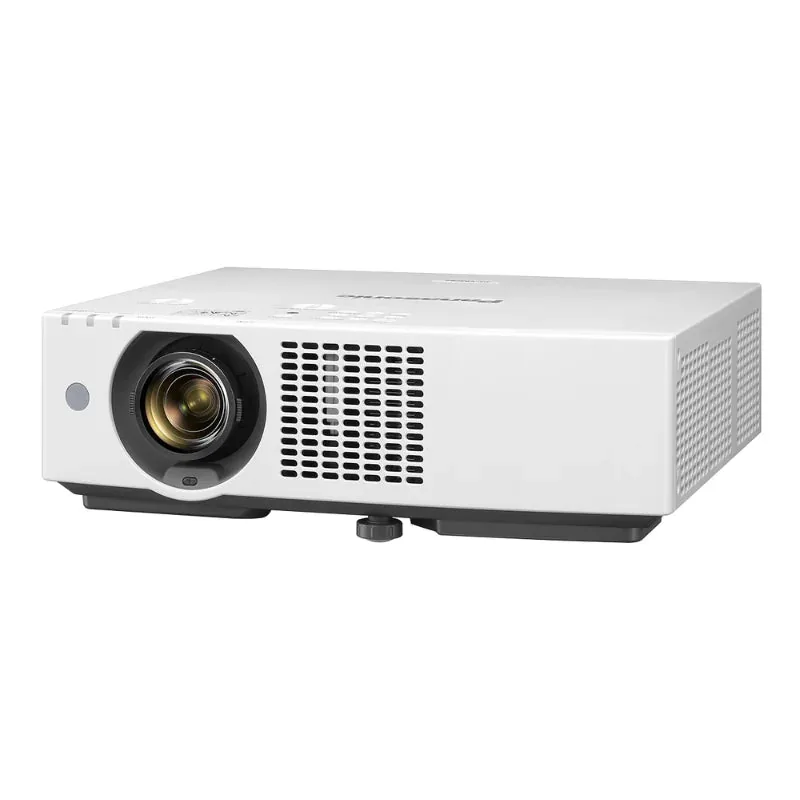

Product image: Panasonic via Rain or Shine Golf

Standard-throw projector · WUXGA

Panasonic PT-VMZ62

Panasonic · 3LCD · 16:10 native

The short answer

The Panasonic PT-VMZ62 is a WUXGA laser projector rated at 6,500 ANSI lumens with a 1.09–1.77:1 throw ratio. To fill a 10.5 × 8 ft (4:3) impact screen from its native 16:10 frame, the lens sits about 13′ 9″ from the screen, and that screen would see roughly 64 foot-lamberts — bright enough to tolerate some ambient light. Listed at $3,989 from Rain or Shine Golf.

Brightness
6,500 lm
Resolution
WUXGA
Throw ratio
1.09–1.77:1
Light source
Laser
Price seen
$3,989

Good fit if

  • You have a long room and can mount it well behind the hitting area
  • Your room has some ambient light, or you run a large screen
  • You want a laser light source with no lamp changes
  • You need lens shift to line the image up without tilting the projector

Look elsewhere if

  • Your room is short — a standard-throw lens needs more distance
  • You can't mount it about 13′ 9″ from the screen
$3,989Rain or Shine Golf listed price · seen 30 Sep 2026
View at Rain or Shine Golf

Every link opens the product page for this exact model. We may earn a commission; it never changes what we publish. Disclosure

Throw distance for simulator screens

Simulator screens are usually 4:3 or square, while most projectors are 16:9 or 16:10. To fill a squarer screen, the projector's full frame is set so its height matches the screen height; the extra width is masked in software. That means the throw distance depends on the projector's native frame width, not the screen width.

ScreenFull 16:10 frame widthLens-to-screen distance
10.5 × 8 ft (4:3)12.6 ft13′ 9″ – 22′ 4″
12 × 9 ft (4:3)14.4 ft15′ 8″ – 25′ 6″
8 × 8 ft (1:1)12.8 ft13′ 11″ – 22′ 8″
12 × 7.5 ft (16:10)12.0 ft13′ 1″ – 21′ 3″
14 × 7.9 ft (16:9)14.0 ft15′ 3″ – 24′ 9″
FOREference calculationDistance = throw ratio × full frame width. Frame width = screen height × 16:10 when the screen is squarer than the projector. Try your own screen.

How bright will it look?

Brightness on the screen is what the golfer sees. We convert the rated lumens into foot-lamberts (fL) for each screen, counting only the share of the frame that lands on the screen, and assuming a screen gain of 1.0. Real results are lower in eco modes and as the light source ages.

ScreenFrame on screenBrightnessWhat that means
10.5 × 8 ft (4:3)83%64 fLbright enough to tolerate some ambient light
12 × 9 ft (4:3)83%50 fLbright enough to tolerate some ambient light
8 × 8 ft (1:1)62%63 fLbright enough to tolerate some ambient light
12 × 7.5 ft (16:10)100%72 fLbright enough to tolerate some ambient light
14 × 7.9 ft (16:9)90%53 fLbright enough to tolerate some ambient light
FOREference calculationfL = rated lumens × share of frame on screen × gain ÷ screen area (sq ft). Cinema reference is roughly 14–16 fL in a dark room.

Resolution and aspect ratio on a sim screen

The seller lists WUXGA (1920 × 1200) with a native 16:10 frame. On a squarer screen part of the frame is unused, so the effective resolution drops.

ScreenPixels on the screenShare of native frame
10.5 × 8 ft (4:3)1,600 × 1,20083%
12 × 9 ft (4:3)1,600 × 1,20083%
8 × 8 ft (1:1)1,200 × 1,20062%
12 × 7.5 ft (16:10)1,920 × 1,200100%
14 × 7.9 ft (16:9)1,920 × 1,08090%

Light source and running

A laser light source needs no lamp changes and holds brightness more evenly over its life.

Ownership figureValue
Rated light-source life20,000 h
At 2 hours a dayabout 27 years
At 4 hours a day (heavy use)about 14 years
FOREference calculationYears = rated hours ÷ (hours per day × 365). Brightness falls gradually before the rated life is reached.

Fit check: Panasonic PT-VMZ62

Planning checks from the published specification and our screen calculations.

✓ Required? Check firsti Good to know
  • ✓MountingMount sold separately. Short-throw models usually ceiling-mount just in front of the golfer so the swing does not cast a shadow; floor enclosures are an alternative. See projector mounts.
  • ✓Throw distanceAbout 13′ 9″ lens-to-screen for a 10.5 × 8 ft 4:3 screen.
  • ?Screen shapeNative 16:10; on a 4:3 screen 83% of the frame is used.
  • ?Image alignmentlens shift: Horizontal and vertical
  • iCablingPlan an HDMI run from the PC or phone/tablet to the projector; long runs may need an active or fibre HDMI cable.

Specifications

Each figure is labelled with where it comes from. Numbered references link to the source list below.

Manufacturer storeRetailer listingFOREference calculationNot verified

Published specifications

Brightness6,500 ANSI lumens[S1]Retailer listing
ResolutionWUXGA (1920 × 1200)[S1]Retailer listing
Native aspect ratio16:10[S1]Retailer listing
Display technology3LCD[S1]Retailer listing
Light sourceLaser[S1]Retailer listing
Light-source lifeUp to 20,000 hours[S1]Retailer listing
Throw ratio1.09–1.77:1[S1]Retailer listing
Zoom1.6× optical[S1]Retailer listing
Lens shiftHorizontal and vertical[S1]Retailer listing
Weight15.2 lb[S1]Retailer listing

FOREference calculations

Throw distance, 10.5 × 8 ft 4:3 screen13′ 9″FOREference calculation
Brightness on that screen64 fLFOREference calculation

Limitations to weigh

  • Mount, cables and screen are not included.

Alternatives worth comparing

BenQ LU935ST5,500 lm, WUXGA; $11 more
LG ProBeam BU53RG5,000 lm, 4K UHD, throw 0.94–1.14; $190 less
Panasonic PT-VMZ51S5,200 lm, WUXGA, throw 1.09–1.77; $800 less
Optoma ZK521ST-B5,000 lm, 4K UHD, throw 0.79; $1,290 less

Where to buy

Our link opens this exact product page. Prices and stock change; check before you order.

$3,989Rain or Shine Golf listed price · seen 30 Sep 2026
View at Rain or Shine Golf

Every link opens the product page for this exact model. We may earn a commission; it never changes what we publish. Disclosure

Questions buyers ask

How far from the screen does the Panasonic PT-VMZ62 go?
With a 1.09–1.77:1 throw ratio, about 13′ 9″ for a 10.5 × 8 ft (4:3) screen. Distance = throw ratio × the full frame width.
Is the Panasonic PT-VMZ62 bright enough for a golf simulator?
Rated at 6,500 ANSI lumens, it gives roughly 64 fL on a 10.5 × 8 ft screen — bright enough to tolerate some ambient light.
Will the Panasonic PT-VMZ62 fill a 4:3 golf screen?
Yes, by matching the screen height and masking the sides. Its native 16:10 frame means about 83% of the image is used on a 4:3 screen.
Laser or lamp: which does the Panasonic PT-VMZ62 use?
Laser, rated up to 20,000 hours.

Sources and verification

  1. Rain or Shine Golf — Panasonic PT-VMZ62U7 6500-Lumen WUXGA Standard-Throw — product page and specifications Retrieved 30 Sep 2026

FOREference has not tested this product hands-on. This reference is compiled from the sources above; our calculations are labelled and show their working. Last verified 30 Sep 2026. How we work
